Introduction⌗

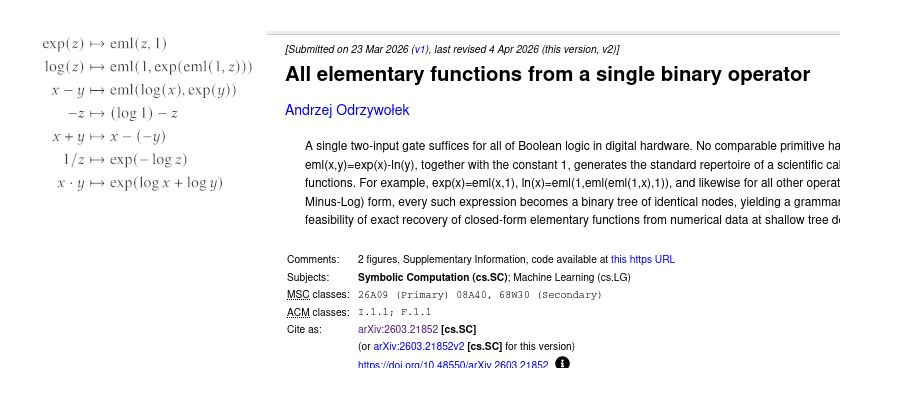

Andrzej proposes a curious operator, Exp-Minus-Log, defined as

$$\operatorname{EML}(x, y) = \exp(x) - \ln(y)$$

Much ink has been spilled about it. You can probably read about this sensation online. But the core claim is that you can use EML to compute most elementary functions, so it could be a two-variable basis function for some type of a calculator.

This looks deceptively simple to compute and I can’t wait for people to tell me to pull libm and try subtracting the exps and logs. Not so simple. The C standard library typically gives you both to 1 ULP each, but the trouble is the word difference. When $e^x \approx \ln y$, the subtraction cancels most of the significant bits, and the relative error in the result can explode to thousands of ULPs. This is catastrophic cancellation, and it is the central enemy of this post.

I’ll walk you through some progressively cleverer implementations that I’ve looked into, benchmark them against __float128 reference values over 20mln random inputs, and explain the IEEE 754 and algebraic tricks that make the final version work.

All code in this article requires a C compiler with hardware FMA support (-march=native or -mfma), IEEE 754 binary64 arithmetic (essentially any modern CPU), and linking against -lm.

The Problem⌗

exp and log are each faithfully rounded by glibc/musl on x86-64: the returned double differs from the mathematical value by at most 1 ULP. So each operand carries at most $\sim 2^{-53}$ relative error (mantissa bits).

Subtraction typically does not introduce new rounding error (Sterbenz’s lemma). However, it amplifies existing error. If $e^x$ and $\ln y$ agree in their top $k$ bits, then $|f| \approx 2^{-k} \cdot \max(e^x, \ln y)$, and the 1 ULP error in each operand becomes $\sim 2^{k-1}$ ULP in the result.

For $k = 20$, that is half a million ULP we get a result with only about 33 correct bits out of 53. Not very useful. Some would anyway write:

double eml(double x, double y) {
    return exp(x) - log(y);
}

This is the baseline. It works perfectly when there is little cancellation, and catastrophically when there is. Over $2 \times 10^7$ random $(x, y)$ pairs with $x \in [-10, 10]$, $y \in (0, 1000]$, measured against __float128:

The vast majority of inputs are fine. But 1.4% of cases exceed 2 ULP, and the worst case has fewer than 33 correct bits.

We can start tackling the problem by reusing the fairly popular trick of double-double arithmetic. Such a number is a pair $(h, l)$ of IEEE 754 doubles satisfying $|l| \le \text{ulp}(h)/2$, representing the unevaluated sum $h + l$. This gives roughly 106 bits of significand, so enough headroom to survive 20+ bits of cancellation with precision to spare.

We have some key building blocks, all of which compile to a handful of instructions with FMA: Knuth’s 2Sum and Dekker’s 2Prod. Given $a, b$, we produce $(s, t)$ such that $a + b = s + t$ exactly, or $(p, e)$ such that $a \cdot b = p + e$ exactly.

static inline void two_sum(double a, double b, double * s, double * t) {
  *s = a + b;
  double v = *s - a;
  *t = (a - (*s - v)) + (b - v);
}

static inline void two_prod(double a, double b, double * p, double * e) {
  *p = a * b;
  *e = fma(a, b, -*p);
}

So now the basic approach would be to compute $e^x$ and $\ln y$ each as a double-double, subtract in extended precision and round once.

exp/log in double-double domain⌗

For $\exp(x)$, the arguments are reduced via $x = (64n + j) \cdot \frac{\ln 2}{64} + r$, where $|r| < \frac{\ln 2}{128} \approx 0.0054$. The reduction is carried out in double-double using FMA product residuals:

double p = kf * L_HI;
double p_err = fma(kf, L_HI, -p);     /* residual of kf * L_HI */
double r_hi, r_lo;
two_sum(x, -p, &r_hi, &r_lo);         /* exact subtraction      */
r_lo -= p_err + kf * L_LO;

Then $e^r$ is approximated by an 8-term Estrin polynomial (serial depth 3 FMAs instead of 8 for Horner), with the $r^2 \cdot c$ tail kept as a double-double via two_prod:

double A  = fma(r, 1.0/6.0,      0.5);
double B  = fma(r, 1.0/120.0,    1.0/24.0);
double C  = fma(r, 1.0/5040.0,   1.0/720.0);
double D  = fma(r, 1.0/362880.0, 1.0/40320.0);
double AB = fma(r2, B, A);
double CD = fma(r2, D, C);
double c  = fma(r4, CD, AB);

The result is scaled by a 64-entry precomputed table $T_j = e^{j \ln 2/64}$ (stored as double-double, $\ge 107$ bits each) and then by $2^n$ via IEEE exponent injection:

double S = u2d((uint64_t)(n + 1023) << 52);   /* 2^n, no multiply */
*hi = s * S;
*lo = e * S;

For $\ln x$, the input is decomposed as $y = 2^e \cdot m$ by extracting IEEE exponent bits, and $m$ is reduced via a 64-entry table $L_j = \ln(1 + j/64)$. The kernel is an atanh series on $s = f/(m+F)$ where $F = 1 + j/64$.

One critical subtlety is that the denominator $m + F$ must be kept as a double-double. Without this, its $\sim 2^{-51}$ rounding error propagates through $2 \cdot \text{atanh}’(s) \approx 2$ and dominates the result:

double d_hi, d_lo;
two_sum(m, F, &d_hi, &d_lo);
double s_hi = f / d_hi;
double err  = fma(-s_hi, d_hi, f);   /* exact: f - s_hi * d_hi */
err        -= s_hi * d_lo;           /* correct for d_lo       */
double s_lo = err / d_hi;

The final subtraction is a double-double subtract followed by a single rounding:

two_sum(eh, -lh, &sh, &sl);
sl += el - ll;
return sh + sl;

This is accurate but expensive: on my machine (Ryzen 7 PRO 7840U), about 2.2 times the naive (glibc) cost. It also costs us two 64-entry tables (2 KB total). The 7 ULP worst case comes from inputs with $\sim$19 bits of cancellation, right at the limit of our $\sim$74-bit intermediates.

The elegant solution⌗

The unspoken key insight to evaluating eml, from my experiments, seems to be the following. When $t = \ln y > 0$, the identity

$$e^x - \ln y = \ln y \cdot \text{expm1}\big(x - \ln(\ln y)\big)$$

follows directly from $e^x = e^{x - \ln t} \cdot t = t \cdot e^{x - \ln t}$, and therefore $e^x - t = t(e^{x - \ln t} - 1) = t \cdot \text{expm1}(x - \ln t)$.

This is actually a really good way to tackle the problem, because expm1 by design handles the cancellation that exp(x) - 1 would otherwise suffer near zero. The problematic subtraction is absorbed into a dedicated function that already knows how to deal with it.

The identity reduces the problem to computing the argument $\delta = x - \ln(\ln y)$ accurately. When cancellation is severe, then of course $\delta \approx 0$, and both $x$ and $\ln(\ln y)$ are $\mathcal O(1)$, so even a small error in $\ln(\ln y)$ gets amplified by $\text{expm1}’ \approx 1$.

This is why the slow path still needs double-double; we call log_dd(y) to get $\ln y = t_h + t_l$, then log_dd(t_h) to get $\ln t_h = u_h + u_l$, and reduce:

double dh, dl;
two_sum(x, -uh, &dh, &dl);         /* exact by Sterbenz (x approxeq. uh) */
dl -= ul;

Then a Taylor-corrected expm1 on the double-double $\delta$:

$$\text{expm1}(\delta_h + \delta_l) \approx \text{expm1}(\delta_h) + e^{\delta_h} \cdot \delta_l$$

The $\mathcal O(\delta_l^2)$ remainder is $< 2^{-104}$, negligible. The final assembly uses FMA for an exact product residual:

double em   = expm1(dh);
double corr = (1.0 + em) * dl;       /* = exp(dh) * dl */
double ph   = th * em;
double pl   = fma(th, em, -ph);      /* exact residual */
return ph + (pl + th * corr - tl);

Contrariwise, for $\sim 93$ of inputs, there is no significant cancellation. In this regime, the naive exp(x) - log(y) is already $\le 2$ ULP. The guard condition is thus a single comparison after the subtract:

double e    = exp(x);
double diff = e - t;
double mag  = e > t ? e : t;
if (fabs(diff) * 2.0 >= mag)     /* < 1 bit cancelled */
  return diff;
return eml_slow(x, y);           /* dd path, cold */

Hence, the full code is as follows:

#include <math.h>
#include <stdint.h>
#include <string.h>

static inline uint64_t d2u(double d) {
  uint64_t u; memcpy(&u, &d, 8); return u;
}
static inline double u2d(uint64_t u) {
  double d; memcpy(&d, &u, 8); return d;
}
static inline void two_sum(double a, double b,
                           double * s, double * t) {
  *s = a + b;
  double v = *s - a;
  *t = (a - (*s - v)) + (b - v);
}

/*
 * 64-entry table: LT[j] = ln(1 + j/64) as (hi, lo).
 */
static const double LT_hi[64] = { 0x0.0p+0, 0x1.fc0a8b0fc03e4p-7, 0x1.f829b0e783300p-6, 0x1.77458f632dcfcp-5, 0x1.f0a30c01162a6p-5, 0x1.341d7961bd1d1p-4, 0x1.6f0d28ae56b4cp-4, 0x1.a926d3a4ad563p-4, 0x1.e27076e2af2e6p-4, 0x1.0d77e7cd08e59p-3, 0x1.29552f81ff523p-3, 0x1.44d2b6ccb7d1ep-3, 0x1.5ff3070a793d4p-3, 0x1.7ab890210d909p-3, 0x1.9525a9cf456b4p-3, 0x1.af3c94e80bff3p-3, 0x1.c8ff7c79a9a22p-3, 0x1.e27076e2af2e6p-3, 0x1.fb9186d5e3e2bp-3, 0x1.0a324e27390e3p-2, 0x1.1675cababa60ep-2, 0x1.22941fbcf7966p-2, 0x1.2e8e2bae11d31p-2, 0x1.3a64c556945eap-2, 0x1.4618bc21c5ec2p-2, 0x1.51aad872df82dp-2, 0x1.5d1bdbf5809cap-2, 0x1.686c81e9b14afp-2, 0x1.739d7f6bbd007p-2, 0x1.7eaf83b82afc3p-2, 0x1.89a3386c1425bp-2, 0x1.947941c2116fbp-2, 0x1.9f323ecbf984cp-2, 0x1.a9cec9a9a084ap-2, 0x1.b44f77bcc8f63p-2, 0x1.beb4d9da71b7cp-2, 0x1.c8ff7c79a9a22p-2, 0x1.d32fe7e00ebd5p-2, 0x1.dd46a04c1c4a1p-2, 0x1.e744261d68788p-2, 0x1.f128f5faf06edp-2, 0x1.faf588f78f31fp-2, 0x1.02552a5a5d0ffp-1, 0x1.0723e5c1cdf40p-1, 0x1.0be72e4252a83p-1, 0x1.109f39e2d4c97p-1, 0x1.154c3d2f4d5eap-1, 0x1.19ee6b467c96fp-1, 0x1.1e85f5e7040d0p-1, 0x1.23130d7bebf43p-1, 0x1.2795e1289b11bp-1, 0x1.2c0e9ed448e8cp-1, 0x1.307d7334f10bep-1, 0x1.34e289d9ce1d3p-1, 0x1.393e0d3562a1ap-1, 0x1.3d9026a7156fbp-1, 0x1.41d8fe84672aep-1, 0x1.4618bc21c5ec2p-1, 0x1.4a4f85db03ebbp-1, 0x1.4e7d811b75bb1p-1, 0x1.52a2d265bc5abp-1, 0x1.56bf9d5b3f399p-1, 0x1.5ad404c359f2dp-1, 0x1.5ee02a9241675p-1};
static const double LT_lo[64] = { 0x0.0p+0, -0x1.83092c59642a1p-62, 0x1.33e3f04f1ef23p-60, 0x1.18d3ca87b9296p-59, 0x1.85f325c5bbacdp-59, -0x1.b599f227becbbp-58, -0x1.906d99184b992p-58, 0x1.942f48aa70ea9p-58, -0x1.61578001e0162p-60, 0x1.9a5dc5e9030acp-57, 0x1.301771c407dbfp-57, 0x1.9f4f6543e1f88p-57, -0x1.bc60efafc6f6ep-58, 0x1.be36b2d6a0608p-59, 0x1.d904c1d4e2e26p-57, -0x1.398cff3641985p-58, -0x1.4f689f8434012p-57, -0x1.61578001e0162p-59, -0x1.caaae64f21acbp-57, 0x1.7dcfde8061c03p-56, 0x1.ce63eab883717p-61, -0x1.76f5eb09628afp-56, -0x1.8f4cdb95ebdf9p-56, -0x1.c68651945f97cp-57, 0x1.f42decdeccf1dp-56, 0x1.3927ac19f55e3p-59, 0x1.4236383dc7fe1p-56, -0x1.ddea0f7f58e3dp-57, -0x1.8c76ceb014b04p-56, 0x1.92ce979ed2950p-56, -0x1.29639dfbbf0fbp-56, -0x1.16cc8bae0bbe4p-56, -0x1.a92e513217f5cp-59, -0x1.cadec02b436afp-56, -0x1.cd04495459c78p-56, -0x1.0f3c590a887cap-59, -0x1.4f689f8434012p-56, 0x1.877b232fafa37p-56, -0x1.0467656d8b892p-56, -0x1.c825c90c344b9p-58, -0x1.328df13bb38c3p-56, -0x1.328260d8abca0p-57, -0x1.cb1cb51408c00p-56, 0x1.395e58e2445bbp-55, -0x1.259da11330801p-55, -0x1.0e09b27a4373ap-60, -0x1.59c33171a6876p-55, -0x1.9d1a11443f10cp-56, 0x1.ef62cd2f9f1e3p-56, -0x1.f48725e374d6ep-55, -0x1.487c0c246978ep-57, -0x1.1a158f3917586p-55, 0x1.fb590a1f566dap-57, 0x1.6eb92d885ce4fp-57, -0x1.58eef67f2483ap-55, -0x1.6fef670bd4b62p-55, 0x1.9192f30bd1806p-55, 0x1.f42decdeccf1dp-55, 0x1.13dfa3d3761b6p-60, -0x1.8d3d9ea6e9ea9p-55, -0x1.1883750ea4d0ap-57, 0x1.0471885cd8ff3p-55, -0x1.35955683f7196p-59, 0x1.c358257f49082p-55};

static void log_dd(double y, double * hi, double * lo) {
  const double LN2_HI = 0x1.62e42fefa39efp-1;
  const double LN2_LO = 0x1.abc9e3b39803fp-56;

  uint64_t bits = d2u(y);
  int biased = (int)((bits >> 52) & 0x7FF);
  int subnorm = (biased == 0);
  if (__builtin_expect(subnorm, 0)) {
      y *= 0x1.0p52;
      bits = d2u(y);
      biased = (int)((bits >> 52) & 0x7FF);
  }
  int e = biased - 1023 - (subnorm ? 52 : 0);
  uint64_t m_bits = (bits & 0x000FFFFFFFFFFFFFull)
                  | 0x3FF0000000000000ull;
  double m = u2d(m_bits);
  int j    = (int)((m_bits >> 46) & 0x3F);
  double F = 1.0 + (double)j * 0x1.0p-6;
  double f = m - F;

  /* dd denominator: avoids 2^-51 contamination */
  double d_hi, d_lo;
  two_sum(m, F, &d_hi, &d_lo);
  double s_hi = f / d_hi;
  double err  = fma(-s_hi, d_hi, f) - s_hi * d_lo;
  double s_lo = err / d_hi;

  double s2 = s_hi * s_hi, s4 = s2 * s2;
  double Aq = fma(s2, 1.0/5.0, 1.0/3.0);
  double Bq = fma(s2, 1.0/9.0, 1.0/7.0);
  double q  = fma(s4, Bq, Aq);

  double log_m_hi   = 2.0 * s_hi;
  double log_m_tail = 2.0 * fma(s_hi, s2 * q, s_lo);

  double a, b;
  two_sum(LT_hi[j], log_m_hi, &a, &b);
  b += LT_lo[j] + log_m_tail;

  double ef = (double)e;
  double eln2_hi = ef * LN2_HI;
  double eln2_lo = fma(ef, LN2_HI, -eln2_hi)
                  + ef * LN2_LO;
  double c, d;
  two_sum(eln2_hi, a, &c, &d);
  d += eln2_lo + b;
  two_sum(c, d, hi, lo);
}

static __attribute__((noinline, cold))
double eml_slow(double x, double y) {
  double th, tl;
  log_dd(y, &th, &tl);
  double uh, ul;
  log_dd(th, &uh, &ul);
  double dh, dl;
  two_sum(x, -uh, &dh, &dl);
  dl -= ul;
  double em   = expm1(dh);
  double corr = (1.0 + em) * dl;
  double ph   = th * em;
  double pl   = fma(th, em, -ph);
  return ph + (pl + th * corr - tl);
}

double eml(double x, double y) {
  // IEEE754 nonsense.
  if (__builtin_expect(x != x || y != y, 0))
    return x + y;
  if (__builtin_expect(y <  0.0, 0)) return NAN;
  if (__builtin_expect(y == 0.0, 0)) return INFINITY;
  if (__builtin_expect(y == INFINITY, 0))
    return -INFINITY;
  if (__builtin_expect(x >= 0x1.62e42fefa39efp+9, 0))
    return INFINITY;
  // Hot path.
  double t = log(y);
  if (t <= 0.0)
    return exp(x) - t;
  double e    = exp(x);
  double diff = e - t;
  double mag  = e > t ? e : t;
  if (__builtin_expect(fabs(diff) * 2.0 >= mag, 1))
    return diff;
  return eml_slow(x, y);
}

Finally, the results are again very good:

A comparison of the methods tested:

All benchmarks ran on x86-64 with glibc, GCC -O2 -march=native, measured against libquadmath’s 128-bit reference (authoritative source) over $2 \times 10^7$ uniformly random $(x, y)$ pairs with $x \in [-10, 10]$ and $y \in (0, 1000]$.
